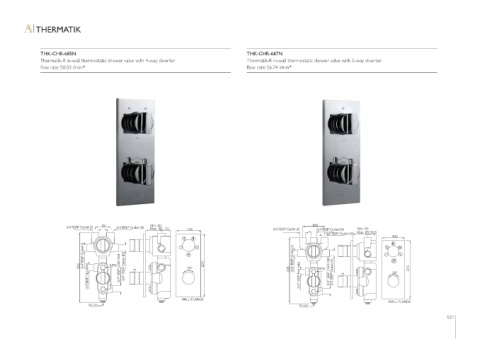

THERMATIK

THK-CHR-685N THK-CHR-687N
Thermatik-R in-wall thermostatic shower valve with 4-way diverter Thermatik-R in-wall thermostatic shower valve with 5-way diverter
flow rate: 58.03 l/min* flow rate: 56.74 l/min*

3/4”BSP Outlet (II) 65 3/4”BSP Outlet (III) Min. 60 105 3/4”BSP Outlet (II) 100 3/4”BSP Outlet (III) Min. 60
Max. 85 37
3/4”BSP Outlet (IV) Max. 85 38.5
II III II 105
III
3/4”BSP Outlet (I) I OFF IV 3/4” BSP Outlet (I) I OFF IV V

3/4”BSP Hot Inlet + 3/4” BSP Hot Inlet 3/4” BSP Cold Inlet 3/4 BSP Outlet (V) + 38º
300 NRV 3/4” BSP Cold Inlet 3/4” BSP Outlet (IV) 38º 270 308 NRV 270

WALL FLANGE WALL FLANGE
PLUG PLUG
