CELLINI

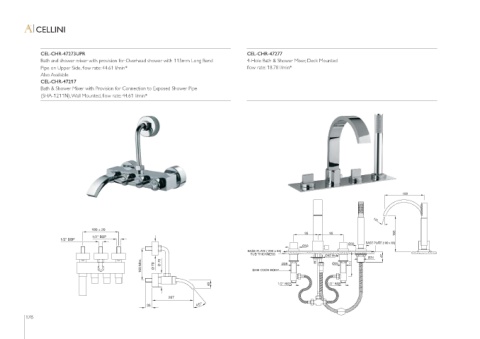

CEL-CHR-47273UPR CEL-CHR-47277
Bath and shower mixer with provision for Overhead shower with 115mm Long Bend 4-Hole Bath & Shower Mixer, Deck Mounted
Pipe on Upper Side, flow rate: 44.61 l/min* flow rate: 18.78 l/min*
Also Available
CEL-CHR-47217
Bath & Shower Mixer with Provision for Connection to Exposed Shower Pipe
(SHA-1211N), Wall Mounted, flow rate: 44.61 l/min*

180

15
180 ± 20
95 95 165
1/2" BSP
1/2" BSP
Ø50 BASE PLATE (100 x 65)
Ø50
BASE PLATE ( 290 x 65)
TUB THICKNESS
Ø42 Hole Ø34 47
160 Max. Ø 70 Ø 70 SIDE COCK BODY Ø28 Ø28 111

40 1/2" BSP 1/2" BSP

207
35 40°
176
